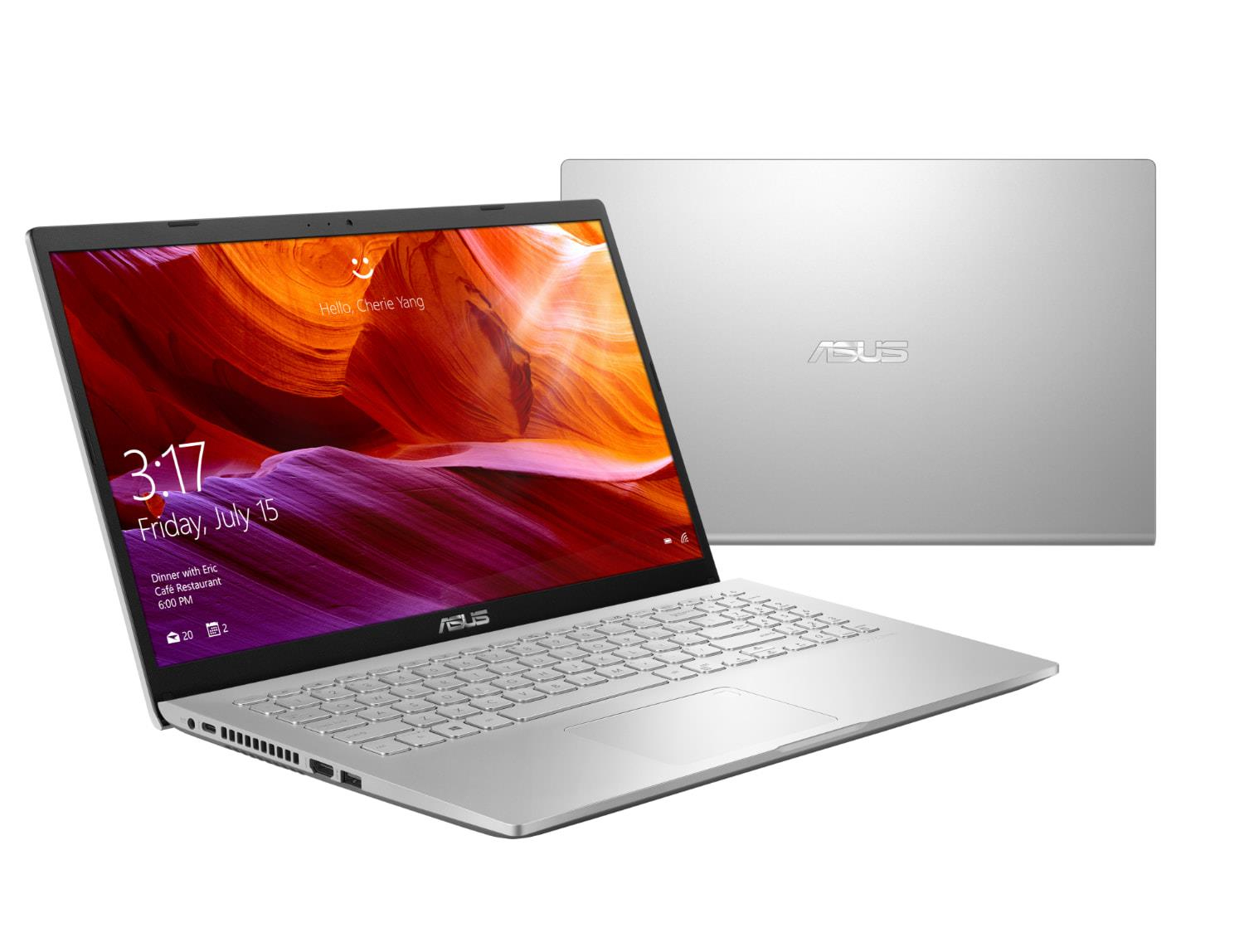

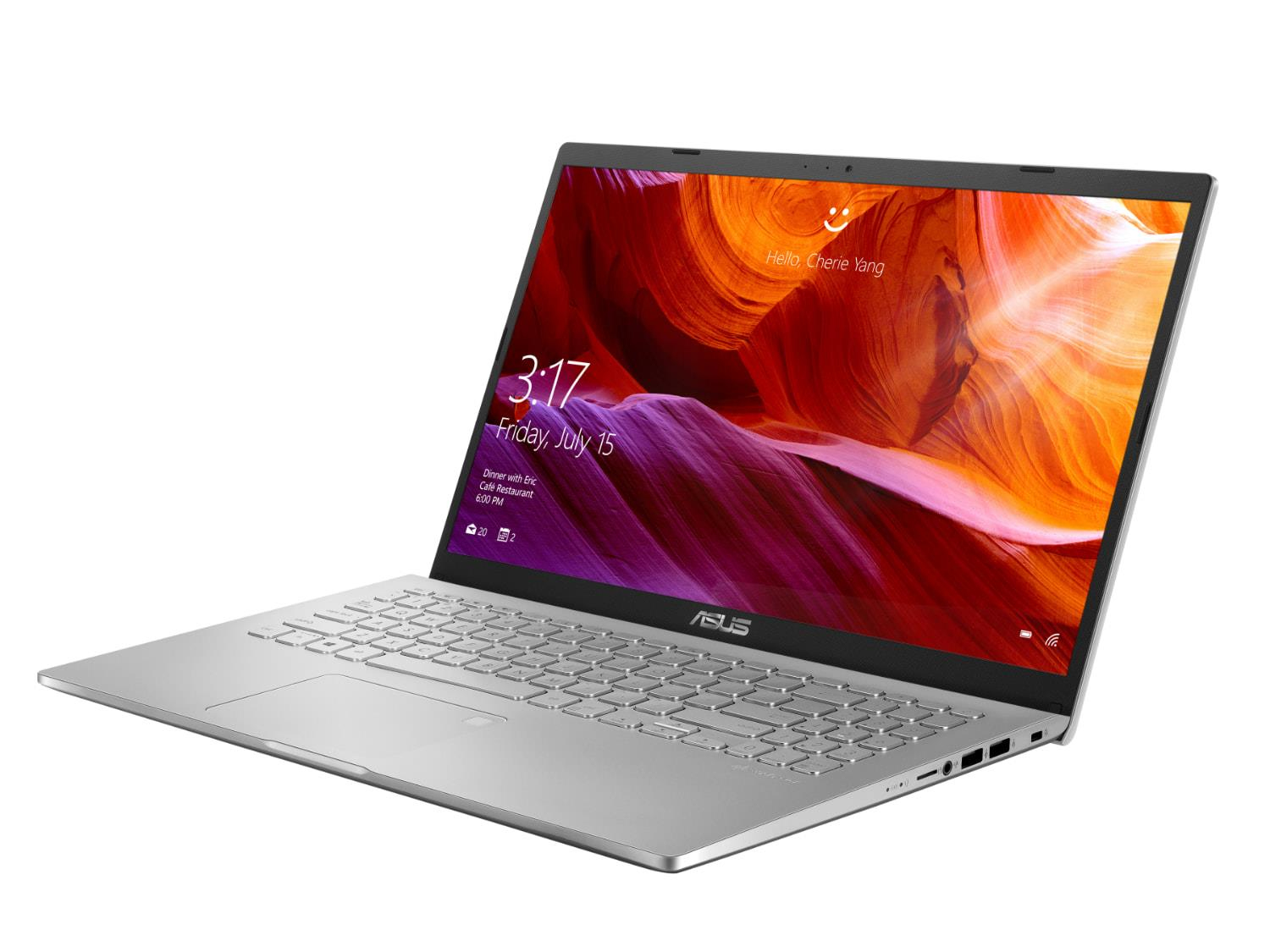

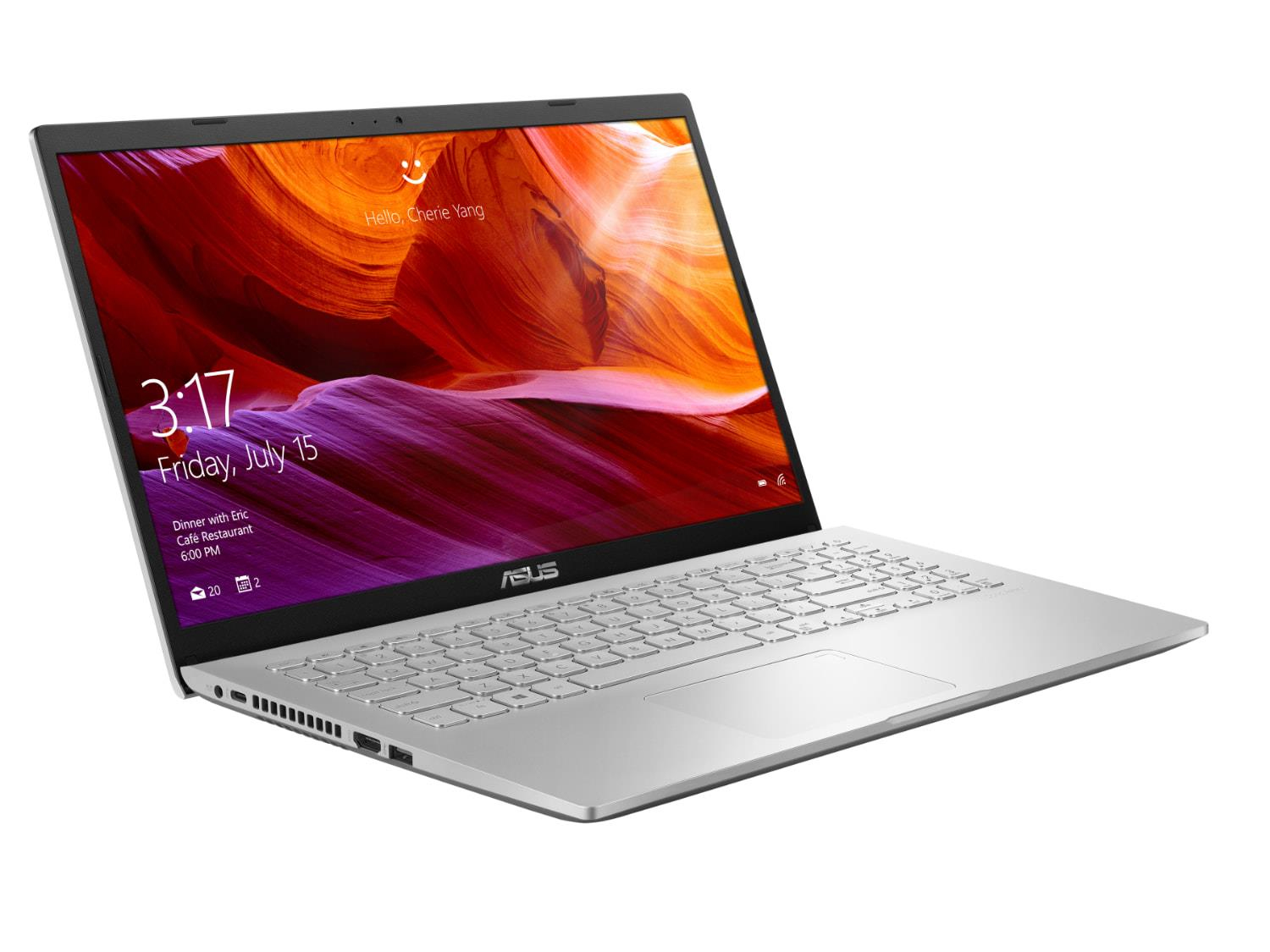

ASUS M509DA-EJ070T 15.6'' FHD RYZEN 7 3700U 8GB 512GB SSD NVME WIN10 (ASUS RENEW GAR 2A SHS)

---

Be empowered by a true classic
One of the world’s smallest all-rounder 15-inch laptops

Whether for work or play, ASUS M509 is the entry-level laptop that delivers powerful performance and immersive visuals. Its NanoEdge display boasts wide 178° viewing angles and a matte anti-glare coating for a truly engaging experience. Inside, it’s powered by up to AMD Ryzen™ 7 3700U processor with 16GB RAM, and features NVIDIA® MX250 discrete graphics. A dual-storage design with up to a 512GB PCIe® SSD and 1TB HDD gives you the perfect combination of large storage capacity and fast data read/write speeds.

Fast and efficient
With its AMD Ryzen™ processor and NVIDIA® MX graphics, ASUS M509 helps you get things done swiftly and efficiently.

Store more, do more
ASUS M509 has a dual storage design to give you the benefits of superfast data performance and a large storage capacity. Install apps on the SSD for quicker response and loading times, and use the HDD to store large files such as movies, music libraries, and photo albums.

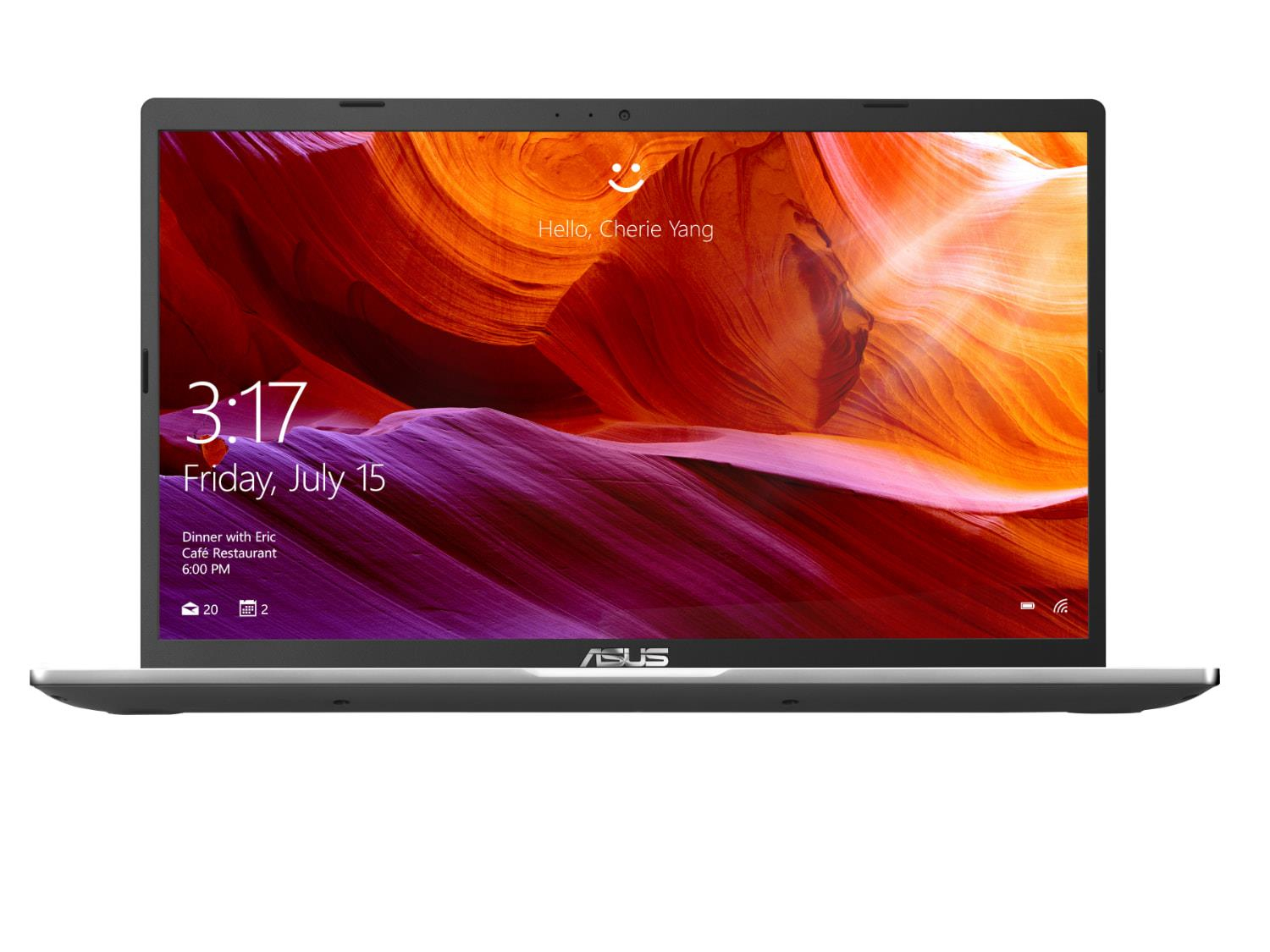

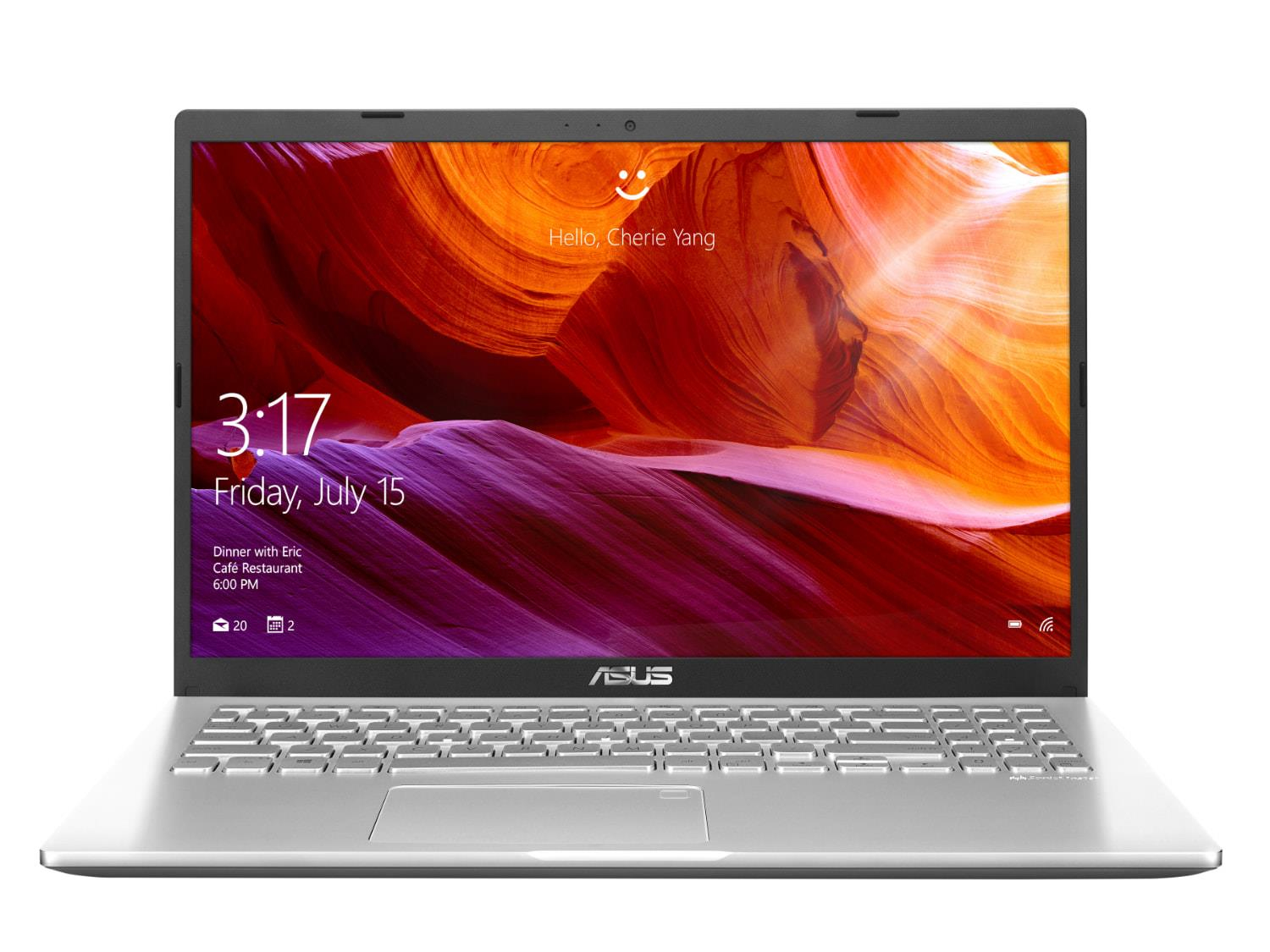

Get a wider view of the world
The NanoEdge display gives ASUS M509 a vast screen area for an immersive viewing experience for work and play. Its wide-view FHD panel features an anti-glare coating to reduce unwanted distractions from irritating glare and reflections, so you can truly focus on what’s in front of you.

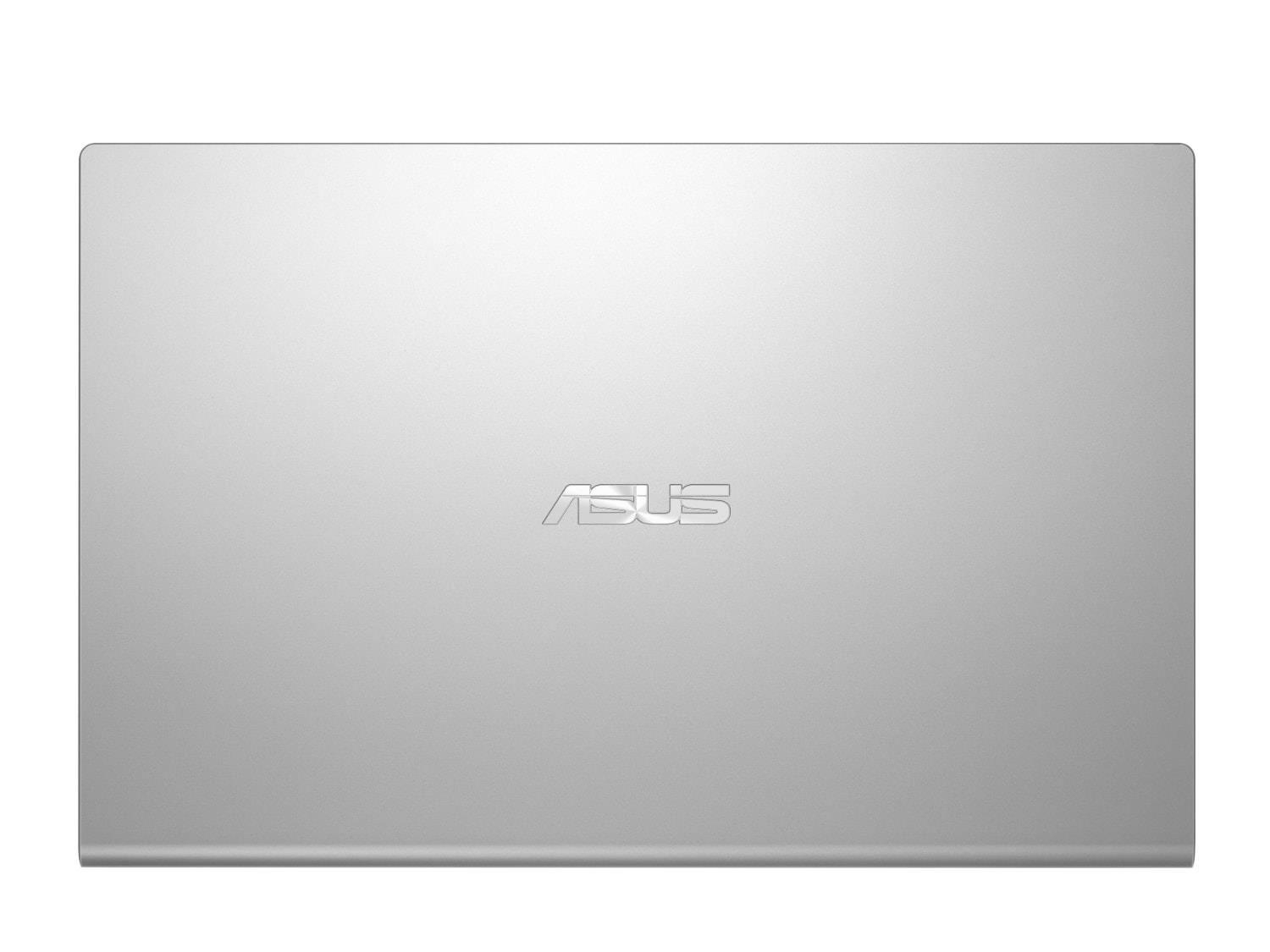

Empower your dynamic lifestyle!
With an overall weight of just 1.8kg2, the extremely portable ASUS M509 is the lightweight laptop that keeps up with your fast-paced lifestyle. It looks good, too, with its Transparent Silver, Slate Grey, Peacock Blue, and Rouge finish.

Rich, crystal-clear audio
ASUS SonicMaster is a combination of hardware, software and audio tuning designed with the goal of giving you the very best audio experience. A professional-grade codec ensures precise audio encoding and decoding; while amplifiers, large speakers and resonance chambers perfectly suited to ASUS M509 ensure a powerful audio delivery and deeper bass. Additional signal processing and tuning help refine minute details, filter noise and improve audio clarity so you get truly immersive sound.

One-touch for Windows Hello login
Accessing ASUS M509 has never been easier and more secure! With the built-in fingerprint sensor in the touchpad and Windows Hello, there’s no need to type in your password every time — all you need is a single touch!

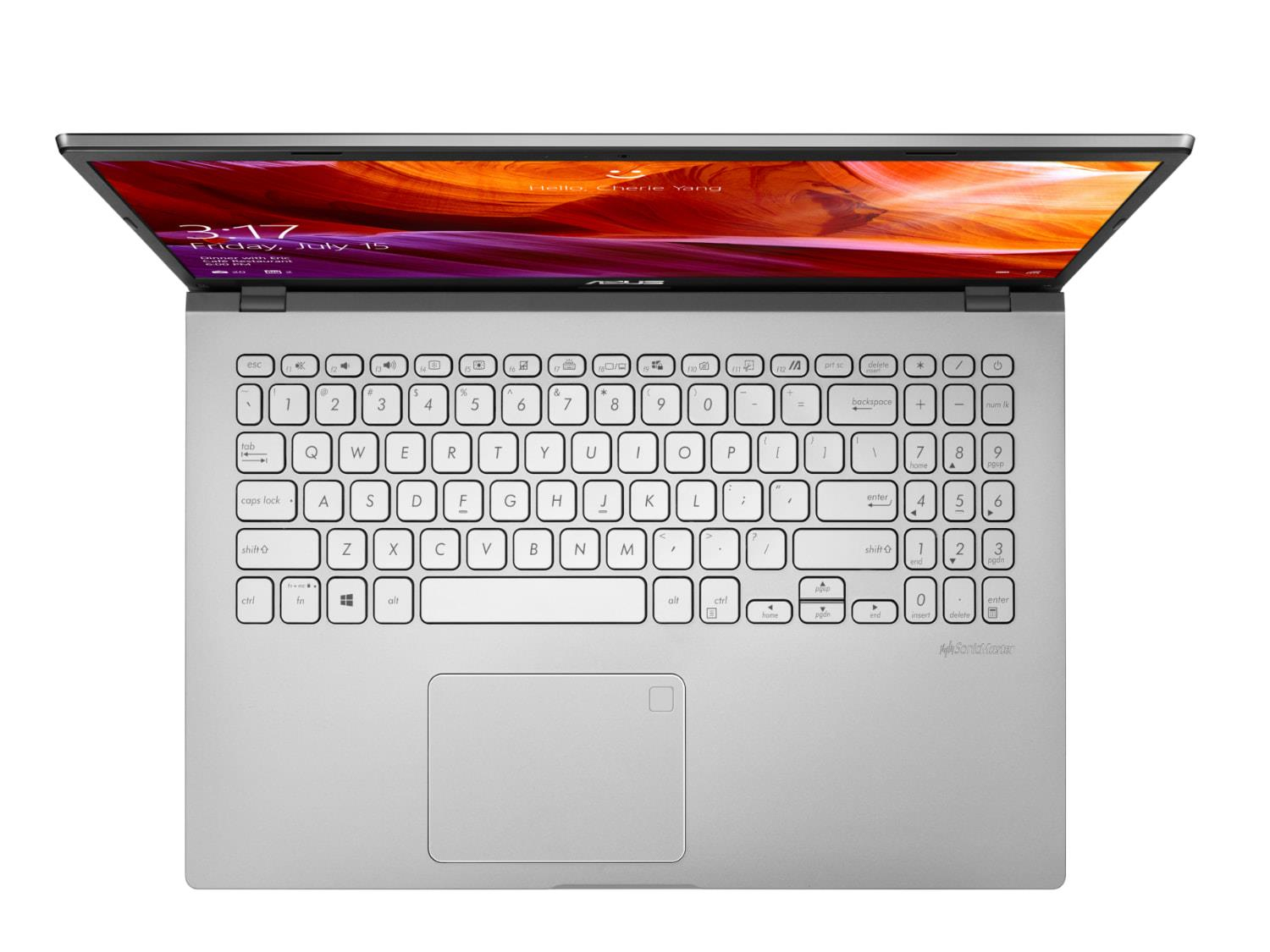

Exactly your type
The full-size backlit keyboard on ASUS M509 is perfect for working in dim environments. Ergonomically-designed, its sturdy, one-piece construction and 1.4mm key travel provide a comfortable typing experience.

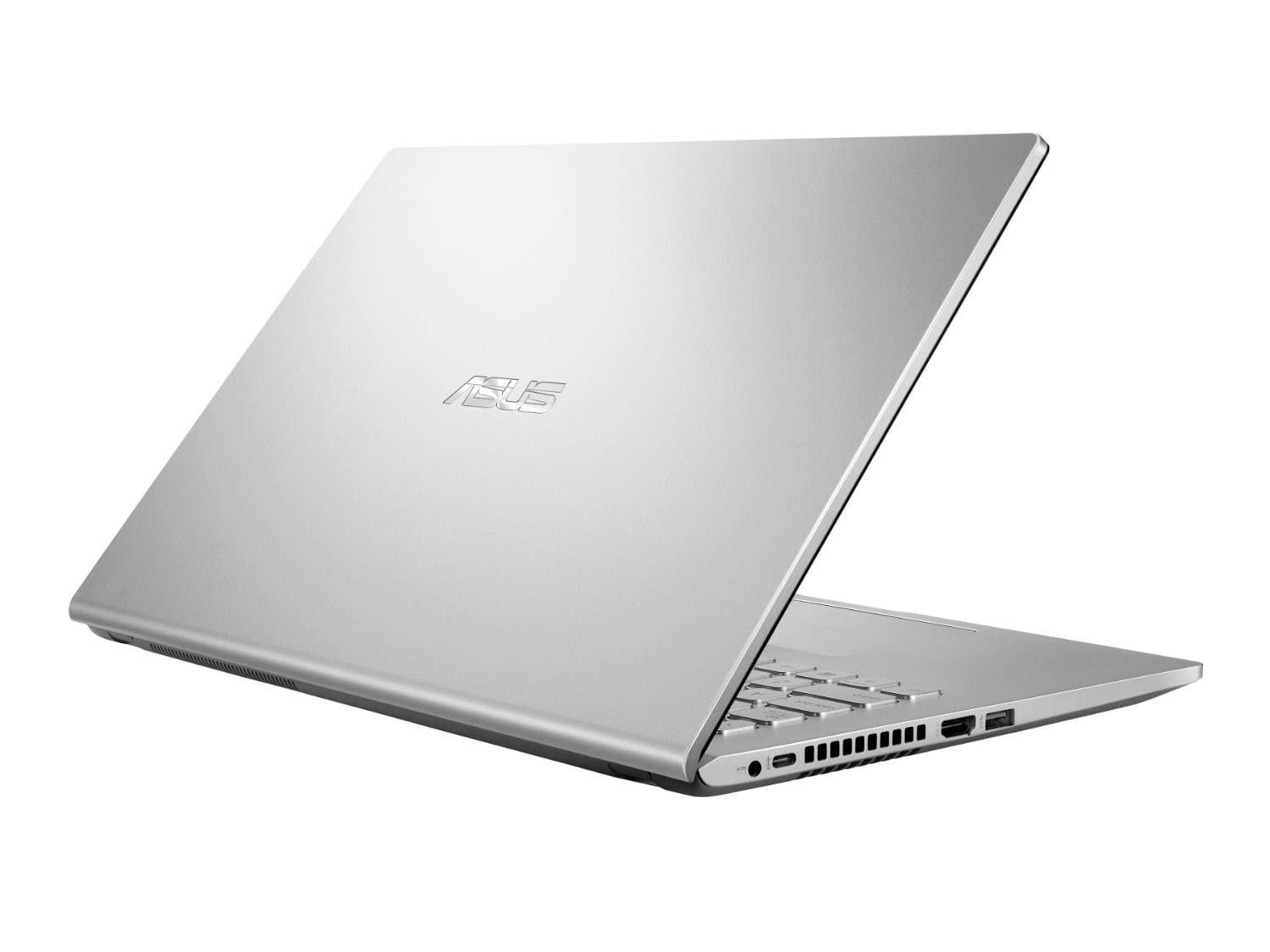

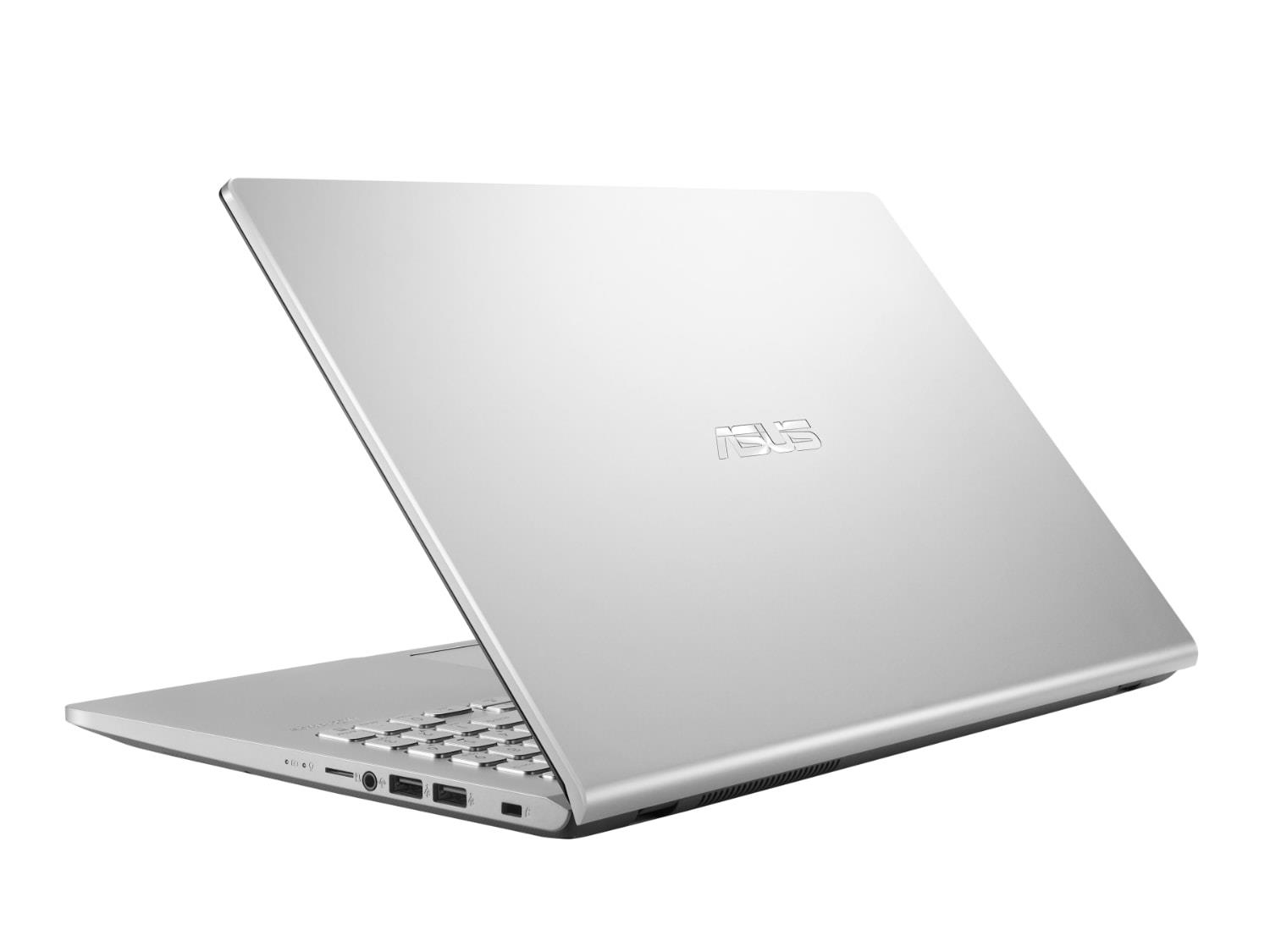

Constantly connected
ASUS M509 is equipped with the reversible USB-C™ 3.1 port, featuring an any-way-up design that makes connecting devices as easy as possible. It also delivers data transfer speeds up to 10x faster than older USB 2.0 connections! There are USB 3.1 and USB 2.0 ports, HDMI output, and a microSD card reader — so you can easily connect all your current peripherals, displays and projectors with zero hassle.

A safe fast-charging and longer-lasting battery
ASUS M509 features a 3x the lifespan of standard lithium-ion batteries. With ASUS fast-charge technology, a low battery can be charged to 60 percent in just 49 minutes.

Internal protection / HDD protection and chassis enhancements
ASUS M509 features EAR HDD shock dampening to protect your data from every bumps, while its reinforced chassis improves typing and allows you to open and close the lid in one smooth motion.

---

Fiche technique

Photo	Description
Nom	M509DA-EJ070T-BE
Titre	ASUS M509DA-EJ070T-BE AMD Ryzen™ 7 3700U Ordinateur portable 39,6 cm (15.6") Full HD 8 Go DDR4-SDRAM 512 Go SSD Wi-Fi 5 (802.11ac) Windows 10 Home Argent
Lien informations	https://www.asus.com/Laptops/ASUS-Laptop-15-M509DA/
Manuel PDF	https://objects.icecat.biz/objects/mmo_76933931_1592826629_8987_12052.pdf
Type de produit	Ordinateur portable
Couleur du produit	Argent
Format	Clapet
Taille de l'écran	39,6 cm (15.6")
Résolution de l'écran	1920 x 1080 pixels
Écran tactile	Non
Type HD	Full HD
Rétroéclairage à LED	Oui
Format d'image	16:9
Surface d'affichage	Mat
Taux de d'actualisation maximal	60 Hz
Couverture NTSC (normale)	45%
Famille de processeur	AMD Ryzen™ 7
Fabricant de processeur	AMD
Modèle de processeur	3700U
Fréquence du processeur	2,3 GHz
Génération de processeurs	AMD Ryzen 3000 Series
Nombre de coeurs de processeurs	4
Nombre de threads du processeur	8
Fréquence du processeur Turbo	4 GHz
Mémoire cache du processeur	4 Mo
Type de cache de processeur	L3
Lithographie du processeur	12 nm
Enveloppe thermique (TDP, Thermal Design Power)	15 W
Mémoire interne	8 Go
Mémoire interne maximale	12 Go
Type de mémoire interne	DDR4-SDRAM
Support de mémoire	Intégré + SO-DIMM
Configuration de la mémoire (fente x taille)	1 x 4 Go
Emplacements mémoire	1x SO-DIMM
Capacité totale de stockage	512 Go
Supports de stockage	SSD
Lecteur optique	Non
Capacité SDD totale	512 Go
Nombre de SSD installés	1
Capacité du Solid State Drive (SSD)	512 Go
Lecteur de cartes mémoires intégré	Oui
Carte graphique intégrée	Oui
Adaptateur de carte graphique distinct	Non
Modèle d'adaptateur graphique distinct	Indisponible
Modèle d'adaptateur graphique inclus	AMD Radeon RX Vega 10
Fréquence de base de carte graphique intégrée	1400 MHz
Microphone intégré	Oui
Caméra avant	Oui
Connexion au réseau mobile	Non
Norme Wi-Fi	Wi-Fi 5 (802.11ac)
Wifi	Oui
Standards wifi	Wi-Fi 5 (802.11ac)
Type d'antenne	1x1
Ethernet/LAN	Non
Bluetooth	Oui
Modèle du Bluetooth	4.1
Quantité de Ports USB 2.0	2
Quantité de ports de type A USB 3.2 Gen 1 (3.1 Gen 1)	1
Quantité de ports de type C USB 3.2 Gen 1 (3.1 Gen 1)	1
Quantité de ports HDMI	1
Quantité d'interface DisplayPorts	0
Quantité de ports Thunderbolt 3	0
Combo casque / microphone Port	Oui
Pavé numérique	Oui
Dispositif de pointage	Pavé tactile
Touches Windows	Oui
Système d'exploitation installé	Windows 10 Home
Capacité de la batterie	32 Wh
Nombre de cellules de batterie	2
AC adaptateur puissance	45 W
Fréquence de l'adaptateur secteur	50 - 60 Hz
Tension d'entrée de l'adaptateur secteur	100 - 240 V
Courant de sortie de l'adaptateur secteur	2,37 A
Tension sortie de l'adaptateur secteur	19 V
Certification	UL, CE Marking Compliance, FCC Compliance, BSMI, Australia C-TICK / NZ A-Tick Compliance, CCC, GOST-R, CB, Energy Star
Certificats de durabilité	ENERGY STAR
Poids	1,8 kg
Largeur	360,2 mm
Profondeur	234,9 mm
Hauteur	22,9 mm
Code du système harmonisé	84713000
Code EAN	4718017587587
