Produit / Composant

ASUS Zenbook 14 OLED UX5401EA-L7106W QWERTY 14'' OLED 2.8K 90Hz I7-1165G7 16GB 1TB SSD NVME WIN11 (ASUS RENEW GAR 2A SHS)

---

A vision of brilliance
Life is brighter and clearer with Zenbook 14X OLED, the slim, light and compact laptop with a gorgeous 16:10 4K OLED HDR NanoEdge touchscreen that gives you the deepest blacks and the most vivid colors. Powered by the latest 11th Gen Intel® Core™ processors and up to NVIDIA® GeForce® MX450 discrete graphics, Zenbook 14X OLED delivers maximum performance with ASUS Intelligent Performance Technology. The precision-engineered 180° ErgoLift hinge makes sharing content easy, and the innovative ASUS ScreenPad™ enhances your on-the-go productivity. Let Zenbook 14X OLED light up your work or play, anywhere.

Bring everything to life in vivid color
Everything comes to life with Zenbook 14X OLED’s amazing up to 4K OLED HDR NanoEdge touchscreen1,2, which has a 16:10 aspect ratio to give you a bigger visual workspace than a standard 16:9 display. It has a cinema-grade 100% DCI-P3 color gamut and is PANTONE® Validated for ultra-vivid, ultra-accurate colors. OLED technology gives you true blacks for enhanced realism, and it cares for your eyes with TÜV-certified for low blue-light emissions.

Ultimate professional-grade colors
ASUS OLED laptops deliver exceptionally detailed and realistic visuals, with a cinema-grade 100% DCI-P3 color gamut. This means that the colors reproduced on the display are richer and more vivid: it’s ideal for color-intensive projects, but also enhances any kind of content.
ASUS OLED laptops maintain a 100% DCI-P3 color gamut at both high and low brightness levels, while on a standard LCD laptop the color gamut is reduced dramatically at low brightness levels. At a gray-level brightness of 16 G, LCD laptops only have an 11% DCI-P3 color gamut, while ASUS OLED laptops maintain a 100% DCI-P3 color gamut.

70% blue-light reduction for eye care
Blue light is known to cause visual discomfort and disrupt sleep quality. However, due to the nature of the special organic lighting materials in an OLED display, ASUS OLED laptops emit 70% less harmful blue light3, and they’re also certified by TÜV Rheinland and SGS. More importantly, unlike traditional blue-light filters, shifting the spectrum means there’s no need to compromise color accuracy.

Eye care, even more critical for children
Since children’s eyes are not fully developed, with a more transparent lens and cornea, harmful blue light can penetrate the eye more easily, potentially causing premature aging of the retina. Research6 has shown that in a five-year-old child’s eyes, approximately 60% of the received blue-light emissions pass through to the retina, compared to only around 20% for a 60-year-old adult. With ASUS OLED displays, the significantly lower blue light levels mean better eye care for children.

OLED has much higher perceptual brightness
On conventional LCD displays, detail and color quality usually decrease dramatically as the brightness is reduced. But ASUS OLED laptops are able to show great detail at lower brightness settings due to their high contrast and their ability to maintain a wide color gamut at low brightness. ASUS OLED laptops can maintain good color reproduction at any brightness level, so you can freely adjust the screen’s brightness to suit your working environment, while still enjoying exceptionally vivid colors. For example, in the living room environment (usually illuminated at about 100 lux), you only need 177 nits brightness in an OLED display to produce the same clear image as 400 nits brightness in an LCD display. At the lower brightness levels needed on OLED displays, there’s less harmful blue light emitted.

True black: See the unseen
ASUS OLED laptops reproduce blacks perfectly. An OLED pixel consists of three sub-pixels, each with its own self-generated illumination: a 4K (3840 x 2400) display has 9,216,000 pixels, which means it has 27,648,000 self-illuminated sub-pixels, compared to just a few dozen LED backlights in most LCD displays. When displaying black on an OLED display, the pixel is simply turned off to produce the darkest possible black. This enables extremely crisp and clear images even in the darkest scenes. You’ll be surprised to see how many new details you’ll spot in your favorite movies!

Fastest response time on any laptop for smooth actions
ASUS OLED displays have a 0.2 ms response time — the fastest of any laptop, and 50x faster7 than the average laptop LCD display. In fact, most of LCD laptop displays have a response time between 10 and 25 ms. This ensures smoother fast-paced action scenes, low-latency gameplay, and subtle details like blur-free text scrolling.

Superb all-round performance
Powered by the latest 11th Generation Intel® Core™ processors, up to 16 GB RAM, Intel Iris Xe integrated graphics and up to NVIDIA GeForce MX450 discrete graphics, Zenbook 14X OLED gives all the all-round performance you need for smooth multitasking and effortless productivity. Ultrafast PCIe® 3.0 x4 SSD storage and gigabit-class Intel WiFi 6 (802.11ax) mean you won’t be waiting for apps or websites to load, either! ASUS IceCool Plus technology gives you a choice of three cooling fan modes via the MyASUS app, ensuring maximum performance whenever you need it.

The Intelligent touchpad, evolved
The new ScreenPad™12 upgrades the traditional laptop experience, adding an interactive secondary touchscreen that enhances your productivity with more possibilities. Its intuitive smartphone-like interface lets you easily manage tasks and create your own seamless multitasking workflow. There’s a series of handy ASUS utility apps to boost productivity including Phone Call, Task Group, Handwriting, and so on. There are also useful quick controls that improve the interactions between the main display and ScreenPad: for example, you can now launch a video or chat box — or many other apps — onto ScreenPad to take advantage of the extra space wherever you are, and without interrupting your work on the main display.

More Possibilities
ScreenPad™ intelligently fits many apps into the 5.65-inch touchscreen, and you can effortlessly add apps to ScreenPad for instant access. The newly-optimized ScreenPad experience ensures that your favorite apps, such as Evernote® and Spotify®, will work perfectly on this secondary display right away, without the need for a ScreenPad-specific version. ASUS also works closely with third party developers, including video-editing software developer Corel®, to optimize adaptive ScreenPad tools for the ultimate productivity — and there’s much more to come. Get ready for the ScreenPad revolution!

Share and create, anywhere
The slim and light Zenbook 14X OLED makes it easy to share and collaborate anywhere, with its lay-flat hinge, fast performance and gorgeous high-resolution visuals.

Versatile, everywhere
Weighing only 1.4 kg13 and measuring a slim 16.9 mm, Zenbook 14X OLED is supremely portable and versatile. And its comprehensive I/O ports mean you can connect to anything you want, wherever you are.

Thoughtful design

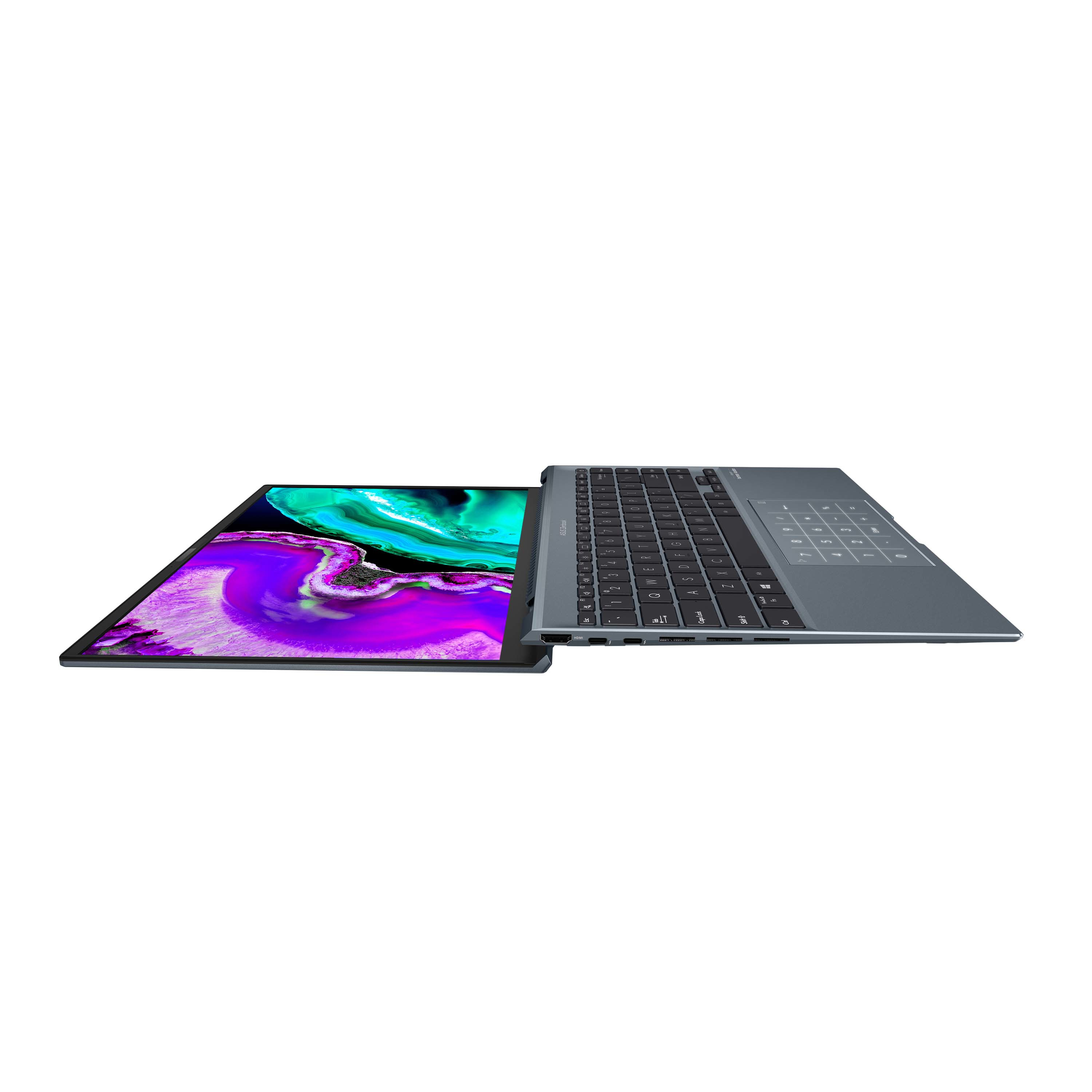

We've made the user experience on Zenbook 14X OLED even better with some thoughtful design features, such as the 180° lay-flat ErgoLift hinge that makes it easy to share and collaborate. There's secure fingerprint login, too, with a handy sensor on the power button.

Convenient connections
Zenbook 14X OLED is packed with all the I/O ports you need for easy connectivity to your devices and peripherals. The latest ultrafast Thunderbolt™ 4 USB-C® ports support fast charging, 4K UHD external displays and up to 40 Gbps data transfers, and there’s also an HDMI port and a USB 3.2 Gen 2 Type-A port alongside a microSD card reader. Communications and audio I/O are taken care of by the convenient audio combo jack.

Next-level AI noise-canceling audio technology
With the increase of remote work and video conferences, we implemented the ASUS AI noise-canceling technology to ensure the best experience. ASUS AI noise-canceling audio employs machine learning in order to isolate unwanted noise from human speech. The ClearVoice Mic feature in the MyASUS app can filter out ambient noise, and normalize all individual voices in Multi-presenter mode from different positions for optimum group conference-call quality. The ClearVoice Speaker feature filters out all ambient noise apart from human speech — so you’ll hear what everyone else is saying.

Try the demo to experience the amazing difference in different environment that ASUS AI noise-canceling technology can make.

MyASUS & ScreenXpert: Your exclusive app collection
Zenbook 14X OLED is bundled with the latest versions of ASUS-exclusive software, including MyASUS and ScreenXpert. MyASUS hosts a collection of handy ASUS apps and tools that help you get more out of your Zenbook 14X OLED. Use it to team up your iOS or Android phone with your laptop, optimize your laptop’s performance, or contact after-sales service and support. ScreenXpert is a multi-screen organizer app that allows seamless interaction between your display and not just your ScreenPad, but also other connected monitors for the ultimate efficiency.

Powerful, immersive sound
For unrivaled audio quality, Zenbook 14X OLED has a stereo sound system certified by the audio experts at Harman Kardon. It delivers powerful, immersive sound that’s crystal-clear, giving you superbly immersive entertainment and communications.

Built to last
Zenbook 14X OLED has been tested to meet the ultra-demanding MIL-STD-810H U.S. military standard for reliability and durability. Tests consisted of a punishing regime designed to ensure survival in harsh environments, and included power-on drop tests, vibration tests, and operation at extremes of humidity, altitude and temperature. Zenbook 14X OLED has also passed ASUS laptop stress tests that far exceed the standards set by the industry.

ASUS Now with Adobe Creative Cloud
Purchase and get complimentary membership.

---

Fiche technique

Photo	Description
Nom	UX5401EA-L7106W
Titre	ASUS Zenbook 14X OLED UX5401EA-L7106W Intel® Core™ i7 i7-1065G7 Ordinateur portable 35,6 cm (14") 2.8K 16 Go LPDDR4x-SDRAM 1 To SSD Wi-Fi 6 (802.11ax) Windows 11 Home Gris
Lien informations	https://www.asus.com/fr/Laptops/For-Home/Zenbook/Zenbook-14X-OLED-UX5400-11th-Gen-Intel/
Manuel PDF	https://objects.icecat.biz/objects/mmo_94791619_1634657985_4381_15980.pdf
Type de produit	Ordinateur portable
Couleur du produit	Gris
Format	Clapet
Nom de la couleur	Pine Grey
Matériau du boîtier/corps	Aluminium
position de marché	Maison
Taille de l'écran	35,6 cm (14")
Résolution de l'écran	2880 x 1800 pixels
Écran tactile	Non
Type HD	2.8K
Type de panneau	OLED
Format d'image	16:10
Surface d'affichage	Gloss
Écran antireflet	Non
Luminosité de l'écran	400 cd/m²
Espace de couleur RGB	DCI-P3
Palette de couleurs	100%
Taux de d'actualisation maximal	90 Hz
Famille de processeur	Intel® Core™ i7
Fabricant de processeur	Intel
Modèle de processeur	i7-1065G7
Fréquence du processeur	1,3 GHz
Génération de processeurs	10e génération de processeurs Intel® Core™ i7
Nombre de coeurs de processeurs	4
Fréquence du processeur Turbo	3,9 GHz
Mémoire cache du processeur	8 Mo
Fréquence d'enveloppe thermique élevée configurable	1,5 GHz
Enveloppe thermique élevée configurable	25 W
TDP configurable vers le bas	12 W
Fréquence d'enveloppe thermique faible configurable	1 GHz
Mémoire interne	16 Go
Mémoire interne maximale	16 Go
Type de mémoire interne	LPDDR4x-SDRAM
Support de mémoire	Intégré
Capacité totale de stockage	1 To
Supports de stockage	SSD
Lecteur optique	Non
Capacité SDD totale	1 To
Nombre de SSD installés	1
Capacité du Solid State Drive (SSD)	1 To
Interface du Solid State Drive (SSD)	NVMe, PCI Express 4.0
NVMe	Oui
Facteur de forme SSD	M.2
Lecteur de cartes mémoires intégré	Oui
Cartes mémoire compatibles	MicroSD (TransFlash)
Carte graphique intégrée	Oui
Adaptateur de carte graphique distinct	Non
Modèle d'adaptateur graphique distinct	Indisponible
Modèle d'adaptateur graphique inclus	Intel® Iris™ Plus Graphics
Fabricant de GPU intégré	Intel
Famille d'adaptateur graphique intégré	Intel Iris Xe Graphics
Fabricant de haut-parleurs	Harman Kardon
Microphone intégré	Oui
Caméra avant	Oui
Caméra avant de type HD	HD
Caméra infrarouge (IR)	Non
Connexion au réseau mobile	Non
Norme Wi-Fi	Wi-Fi 6 (802.11ax)
Standards wifi	Wi-Fi 6 (802.11ax)
Type d'antenne	2x2
Ethernet/LAN	Non
Bluetooth	Oui
Modèle du Bluetooth	5.0
Quantité de Ports USB 2.0	0
Quantité de ports de type A USB 3.2 Gen 1 (3.1 Gen 1)	0
Quantité de ports de type C USB 3.2 Gen 1 (3.1 Gen 1)	0
Quantité de ports HDMI	1
Quantité de ports de type A USB 3.2 Gen 2 (3.1 Gen 2)	1
Technologie Thunderbolt	Oui
Version HDMI	2.0b
Quantité de ports Thunderbolt 4	2
Intel® Thunderbolt 4	Oui
Combo casque / microphone Port	Oui
Pavé numérique	Non
Dispositif de pointage	NumberPad
Disposition des touches du clavier	QWERTY
Clavier backlight	Oui
Système d'exploitation installé	Windows 11 Home
Architecture du système d'exploitation	64-bit
Technologie Trusted Execution d'Intel®	Non
Intel® VT-x avec Extended Page Tables (EPT)	Oui
Intel® TSX-NI	Non
Programme Intel® Stable Image Platform Program (SIPP)	Non
Intel® Software Guard Extensions (Intel® SGX)	Oui
Intel® 64	Oui
Bit de verrouillage	Oui
États Idle	Oui
Configuration CPU (max)	1
Les options intégrées disponibles	Non
Technologie Intel® Virtualization Technology pour les E/S dirigées (VT-d)	Oui
Technologie de vitalisation d'Intel® (VT-x)	Oui
Capacité de la batterie	63 Wh
Technologie batterie	Lithium-Ion (Li-Ion)
Nombre de cellules de batterie	3
Port de charge USB de type C	Oui
AC adaptateur puissance	100 W
Fréquence de l'adaptateur secteur	50 - 60 Hz
Tension d'entrée de l'adaptateur secteur	100 - 240 V
Courant de sortie de l'adaptateur secteur	5 A
Tension sortie de l'adaptateur secteur	20 V
Capacité de puissance USB	Oui
Port de câble antivol	Non
Lecteur d'empreintes digitales	Oui
Puce TPM (Trusted Platform Module)	Oui
Poids	1,4 kg
Largeur	311,2 mm
Profondeur	221,1 mm
Hauteur	15,9 mm
Code EAN	4711081382508
